Navigating the Incidents Tab

Use this reference guide to find out what each item in the Incidents tab is, then follow the links to learn more about a feature.

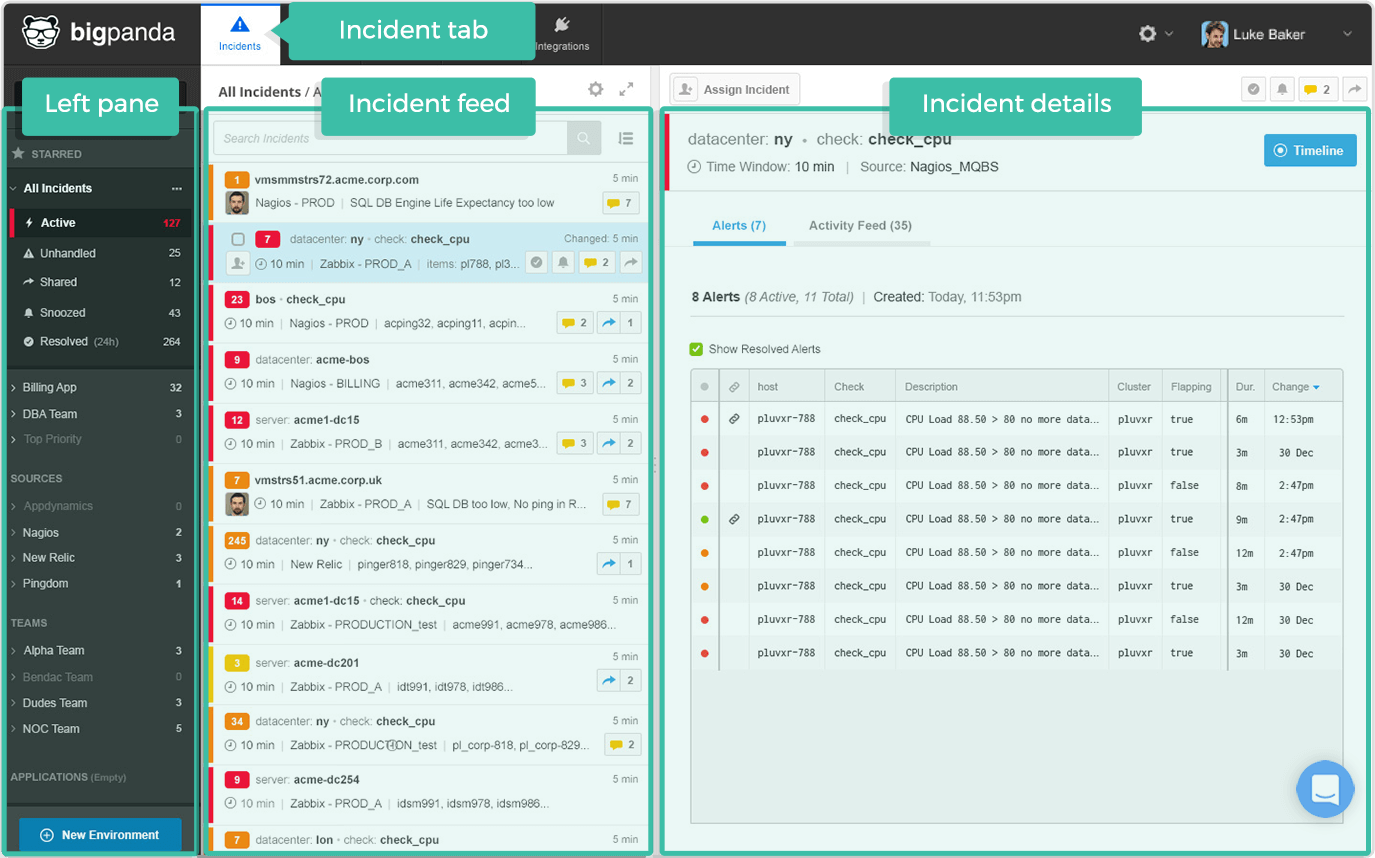

Incident Tab

The Incidents tab provides a centralized place to manage your BigPanda incidents.

Item

Description

Related Links

Left Pane

Lists the Environments and folders that you can use to filter the incident feed.

Environments

Selecting a Folder

Incident Feed

Provides a consolidated view of related incidents. You can filter the incident feed by searching or by selecting an Environment and a folder.

Incident Feed

Incident Details

Shows detailed information about the incident selected in the incident feed. You can view details of the related alerts, view the incident life cycle on a timeline, and more.

Working With Incidents

Incident Feed

Item

Description

Related Links

Filter

Shows the Environment and folder by which the feed is filtered and the number of incidents that match the filter.

Using Incident Feed

Environments

Star

Indicates whether the Environment is starred and allows you to add it to or remove it from your list of starred Environments.

Environments

Search

Allows you to filter the incident feed by searching for specific values within the incidents.

Searching for Incidents

Incident List Item

Shows basic information about an individual incident in the feed.

Viewing the Incident Feed

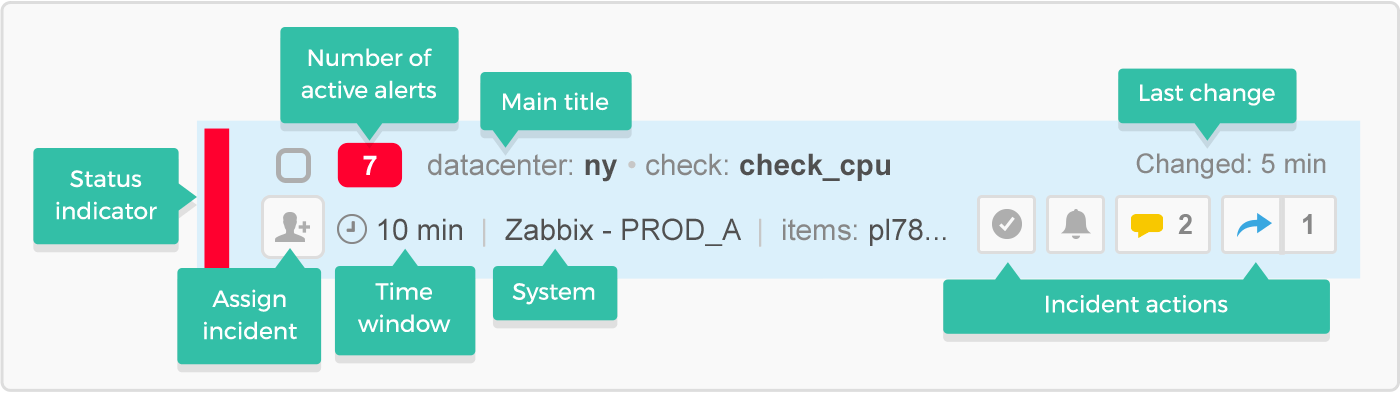

Incident List Item

Item

Description

Related Links

Status Indicator

Displays a colored ribbon on the left to indicate the incident status, which is determined by the most severe status of the related alerts.

No. of Active Alerts

Counts the number of related alerts that are in the Critical or Warning state.

Viewing the Incident Feed

System

Shows the type of monitoring tool (such as Nagios or Zabbix) and the integration name (such as Production) that the alerts came from.

Viewing the Incident Feed

Integrating Your First Monitoring Service

Last Change

Calculates the amount of time since the last change to the incident. This calculation includes status changes on related alerts and the addition of new alerts to the incident. You can point to it to see the exact time of the last change.

Viewing the Incident Feed

Main Title

Shows why the alerts are correlated into an incident.

Incident Titles

Viewing the Incident Feed

Subtitle

Summarizes the subjects (such as hosts or applications) that are part of the incident.

Incident Titles

Viewing the Incident Feed

Incident Actions

Provides access to the available actions for an incident, such as Resolve, Snooze, Comment, Merge and Share.

Using the Incident Feed

Working With Incidents

Incident Actions

Item

Description

Related Links

Merge

Allows you to add the alerts in source incidents to a destination incident to be handled as one, singular incident.

Merge Incidents

Resolve Incident

Allows you to manually resolve an active incident.

Incident Life Cycle Logic

Snooze Incident

Allows you to remove a low priority incident from the active folder for a set period of time.

Snoozing Non-Urgent Incidents

Selecting a Folder

Comments

Allows you to view and add comments for an incident. Shows the number of existing comments, if applicable.

Commenting on Incidents

Share

Allows you to manually share an individual incident.

Sharing from the Incident Feed

Sharing Incidents with Co-Workers

No. of Existing Shares

Shows the number of times the incident has been shared manually and by an AutoShare rule. Click the icon to see the sharing history and subscribers.

Seeing Existing Shares

Incident Details

Item

Description

Related Links

Status Indicator

Displays a colored ribbon on the left to indicate the incident status, which is determined by the most severe status of the related alerts.

Alert/Incident Status

Viewing the Incident Feed

Incident Life Cycle Logic

Main Title

Shows why the alerts are correlated into an incident.

Incident Titles

Viewing the Incident Feed

Subtitle

Summarizes the subjects (such as hosts or applications) that are part of the incident.

Incident Titles

Viewing the Incident Feed

Incident Actions

Provides access to the available actions for an incident, such as Resolve, Snooze, Merge, Comment, and Share**.

Using the Incident Feed

Working with Incidents

Merge Incidents

Alerts Tab

Shows information about each of the alerts that the incident contains. Click any row to view current details for the alert.

Viewing Incident and Alert Details

Alert Correlation Logic

Activity Feed Tab

Shows what has happened to the incident from when it was created until the current time, sorted with the most recent event on top.

Viewing Incident and Alert Details

Timeline

Allows you to visualize the life cycle of an incident on a timeline, which helps you understand how the incident has unfolded.

Visualizing the Incident Life Cycle

Incident Life Cycle Logic

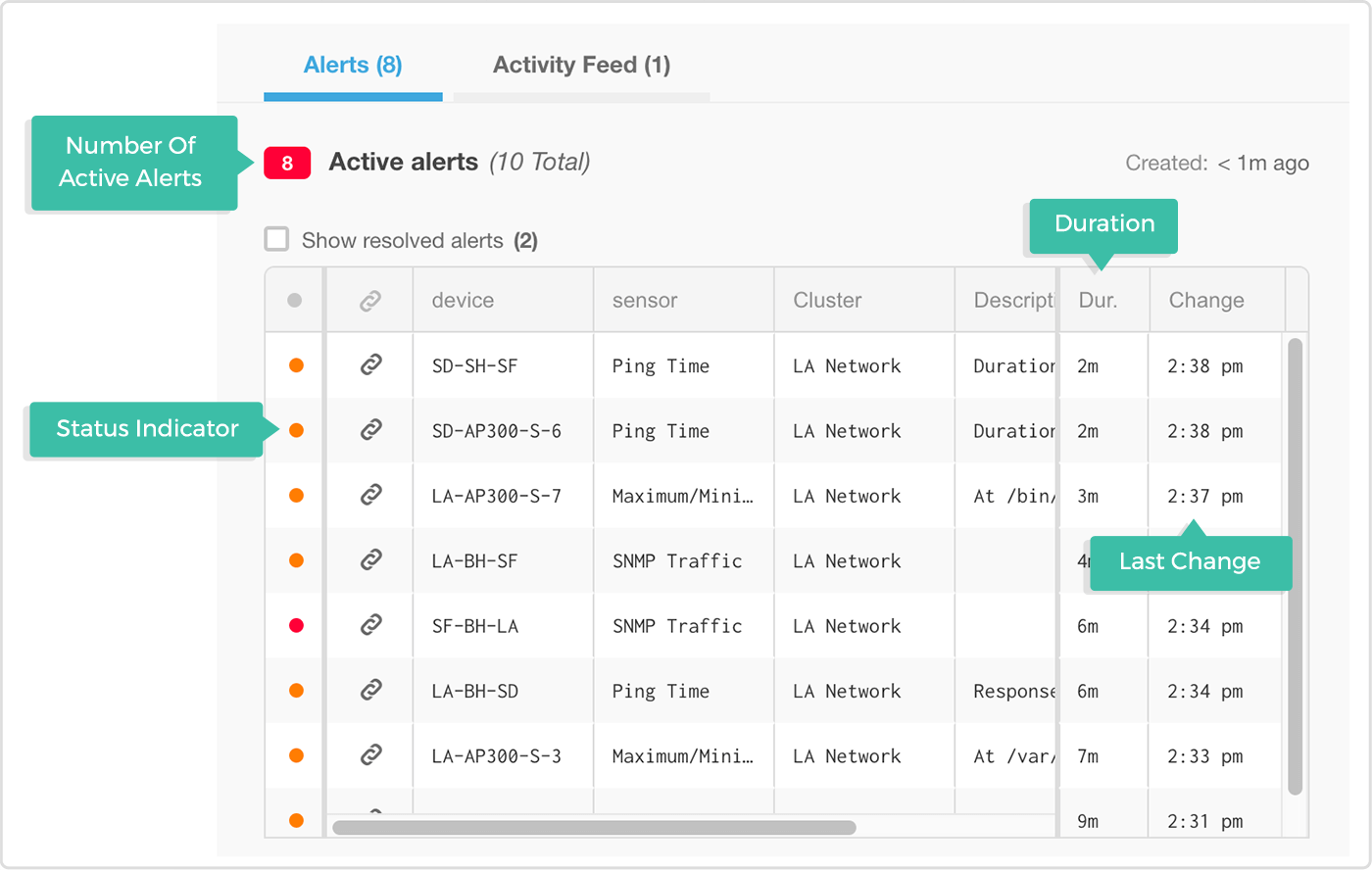

Alerts Tab

Item

Description

Related Links

No. Of Active Alerts

Counts the number of related alerts that are in the Critical or Warning state.

Viewing Incident and Alert Details

Split

Multiple incident alerts can be split off and handled as a new incident.

Split Incidents

System

Shows the type of monitoring tool (such as Nagios or Zabbix) and the integration name (such as Production) that the alerts came from.

Viewing Incident and Alert Details

Integrating Your First Monitoring Service

Status Indicator

Displays a colored dot on the left to indicate the current status of a related alert.

Viewing Incident and Alert Details

Alert Data

Displays the data for each related alert in a table. The column headers show the tag names and the rows show the tag values. You can drag the center divider to resize the incident feed, and columns are added, removed, or resized dynamically as space allows.

Viewing Incident and Alert Details

Link

Displays a clickable link icon if the alert contains any links to more information, such as runbooks or time-series metrics.

Viewing Incident and Alert Details

Duration

Shows the amount of time since the first event for each alert.

Viewing Incident and Alert Details

Last Change

Shows the time of the last status change for each alert.

Viewing Incident and Alert Details

Activity Feed Tab

Item

Description

Related Links

Comment Field

Allows you to comment on the incident. Comments are added as events in the activity feed.

Viewing Incident and Alert Details

Event Indicator

Displays an icon beside each item in the event list to indicate the type of event.

Viewing Incident and Alert Details

Username

Shows the user who made the update, if applicable.

Viewing Incident and Alert Details

Event Time

Shows the exact time the event occurred.

Viewing Incident and Alert Details

Event Type

Shows the type of event that occurred.

Viewing Incident and Alert Details

Event Details

Shows more information about the event, depending on the event type. For example:
For sharing events, shows the channel, recipients, and annotation, if applicable. If the recipient is an external ticketing system, provides a link directly to the ticket (for example, a JIRA ticket).
For snoozed events, shows the ending time of the snooze period.
For comment events, shows the comment text.

Viewing Incident and Alert Details

Sharing from the Incident Feed

Defining AutoShare Rules

Day Separator

Indicates the day the preceding events occurred, if the list of events spans more than one calendar day. Because the event list is sorted with the most recent event on top, the day separator appears below the events that occurred on a given day.

Viewing Incident and Alert Details

Timeline

Item

Description

Related Links

Incident Status

Displays a colored ribbon on the left to indicate the incident status, which is determined by the most severe status of the related alerts.

Alert/Incident Status

Viewing the Incident Feed

Incident Life Cycle Logic

Main Title

Shows why the alerts are correlated into an incident.

Visualizing the Incident Life Cycle

Algorithmic Correlation

Incident Titles

Subtitle

Summarizes the subjects (such as hosts or applications) that are part of the incident.

Visualizing the Incident Life Cycle

Algorithmic Correlation

Incident Titles

No. of Alerts

Counts the total number of alerts that the incident contains, regardless of the current status of the alerts.

Visualizing the Incident Life Cycle

Algorithmic Correlation

System

Shows the type of monitoring tool (such as Nagios or Zabbix) and the integration name (such as Production) that the alerts came from.

Viewing the Incident Feed

Integrating Your First Monitoring Service

Timeline

Shows the history of status changes for every alert that the incident contains. Each row represents the history for an individual alert.

Visualizing the Incident Life Cycle

Algorithmic Correlation

Status Change

Displays a colored dot that represents a status change for the related alert. Click a dot to view the alert details at the time of the status change. Then, click the arrows to step through the details of every status change for the alert.

Last Change

Calculates the amount of time since the last change to the incident. This calculation includes status changes on related alerts and the addition of new alerts to the incident.

Alert List

Lists basic information about each alert that the incident contains, including a colored dot on the left to indicate the current status of the alert.

Current Statuses

Counts the number of related alerts that are in each of the current states: Critical, Warning, Ok (resolved), and Ack (acknowledged or maintenance).

Incident Start Time

Shows the time when the earliest alert was received.

Incident End or Current Time

Shows the time when the incident was resolved (incident end time) or the current time if the incident is still active.
